Sleeve and Penetration Sleeve

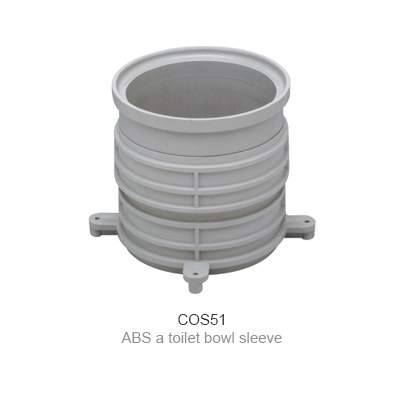

  • ABS Toilet Bowl Sleeve
    Perfect construction designed detailed water leak prevention
    Durability is excellent
    Quality of material : For High Impact ABS(Glue pipe type)
    Use : Toilet bowl

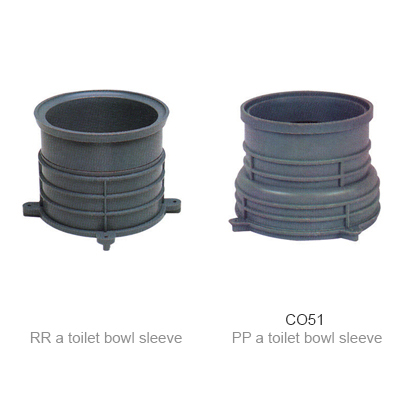

  • PP Toilet Bowl Sleeve (For vertical pipe, RR)
    Use : Toilet bowl
    Quality of material : For High Impact P.P(P.KPipe type)
    Dimension : ф100x100∼(Infinity)

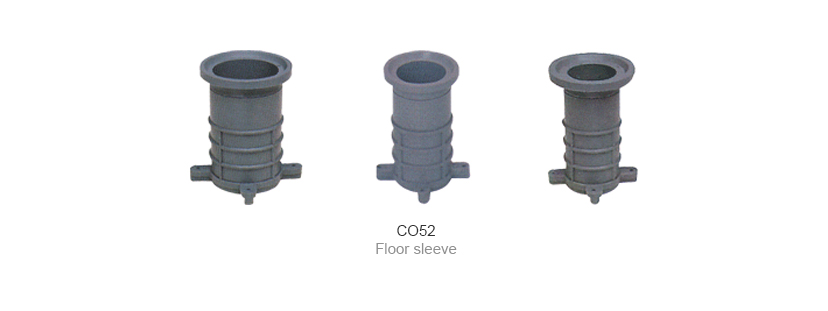

  • Floor sleeve
    Straight pipe
    Perfect construction designed detailed water leak prevention.
    Using quality of materials that durability and thermostable are excellent.
    Use : Washbowl, bath, sink sleeve
    Quality of material : For High Impact P.P
    Dimension : ф50x100∼(Infinity), ф40x100∼(Infinity), ф35x100∼(Infinity)

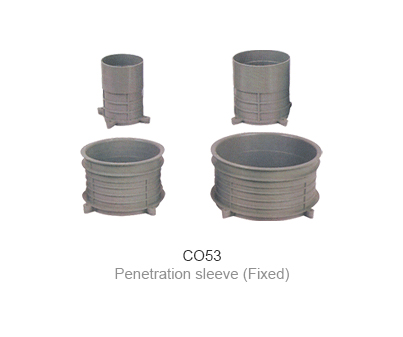

  • Penetration sleeve (Fixed)
    Installation is easy compare with using existing steel pipe
    Cost reduction
    Quality of material : For High Impact P.P
    Dimension : Diameter x Height
Dimension Square standard(m/m) Height(m/m)
ф35 (35m/m) 120, 135, 150~ CO55
Height adjustable by extension ring
ф50 (50m/m) 120, 135, 150~
ф65 (65m/m) 120, 135, 150~
ф80 (80m/m) 120, 135, 150~
ф100 (100m/m) 120, 135, 150~
ф125 (125m/m) 120, 135, 150~
ф125 (125m/m) 120, 135, 150~
ф150 (150m/m) 120, 135, 150~
ф175 (175m/m) 120, 135, 150~
ф200 (200m/m) 120, 135, 150~
ф250 (250m/m) 120, 135, 150~
  • Peanut sleeve
    Various construction can be based on usage ф50, ф100 Realization of pipe penetration at the same time
    Quality of material : For High Impact
    Dimension : ф100xф50
    Height : 120, 135, 150, 180, 200
