Special Features and use of all-in-one Balcony Trap

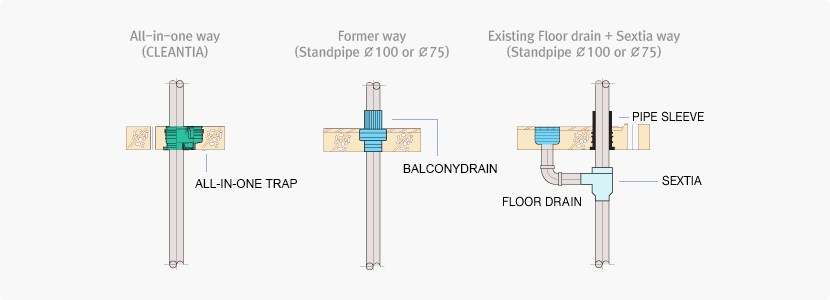

Structure and use
- This development was first developed in Korea in the 1981s and improve SEXTIA SYSTEM is supplied APART in KOREA now. When the water at balcony and washing machine drain is getting into all-in-one trap and flows into drift lower in the direction of dotted line, it is designed to turning on the tube wall by centrifugal force. Also air permeability is excellent at piping and drain noise is cut off and it is excellent at drainage works as an epoch-making system using non return trap which cut out odor and bubble.
Product Feature
- For the first time in Korea, perfectly solve the problem about drainage noise and odor at using existing balcony trap and bubble backflowing at using washing machine.
Comparison with performance and cost of construction by system
| Separation/Type | Existing balcony | Balcony using deodorization and soundproofing | Floor Drain+Sextia | Cleantia |
|---|---|---|---|---|
| Piping structural | Simply | Simply | Complicated | Simply |
| Drainage noise | Loud 90db | Small 70db | Small(65db) | Small(65db) |
| Bad smell, bubble burst | Heavy | Little | No | No |
| Exterior | Simply | Simply | Complicated | Simply |
| Cost of construction | 65 | 60 | 150 | 100 |
| Materials | Balconydrain | No-noise balcony | Sextia+Trench+Sleeve | Cleantia |
| Plumbing Pipe | Balconydrain | VG1, VG2, Spin | VG1, VG2, Spin | |
| Plumbing Pipe | COSMO Product | |||
